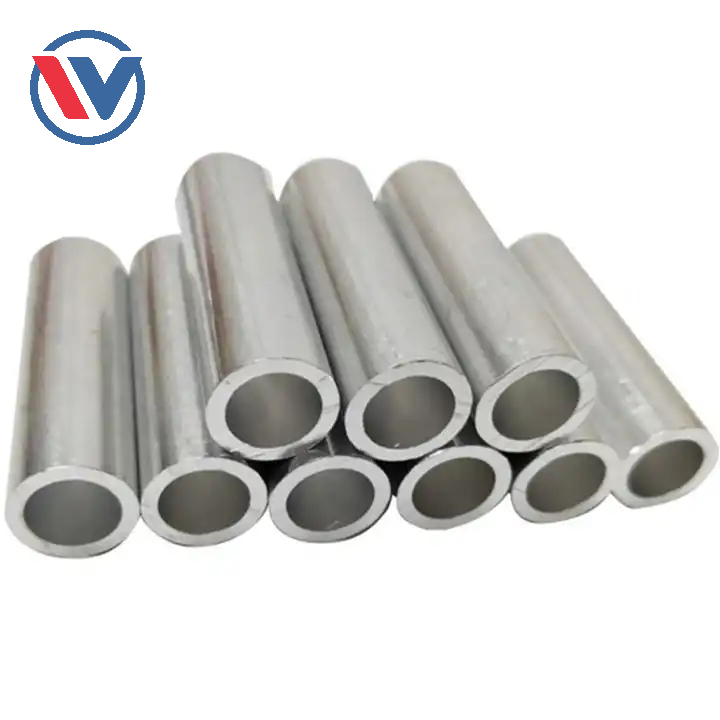

Model | Aluminum/Aluminium Tube/Pipe |
|
Material Grade | 1000 series: 1050, 1060, 1070, 1080, 1100, 1435, etc |
|
2000 series: 2011, 2014, 2017, 2024, etc |
|
3000 series: 3002, 3003, 3104, 3204, 3030, etc |
|
5000 series: 5005, 5025, 5040, 5056, 5083, etc |
|
6000 series: 6101, 6003, 6061, 6063, 6020, 6201, 6262, 6082, etc |
|
7000 series: 7003, 7005, 7050, 7075, etc |
|
Size | Outer Diameter: 3-250mm |
|
Wall Thickness: 0.3-50mm |
|
Length: 10mm-6000mm |
|
Standards | ASTM, ASME, EN, JIS, DIN, GB/T, etc |
|
Surface treatment | Mill finished, anodized, powder coating, Sand blast, etc |
|
Surface colors | Nature, silver, bronze, champagne, black, gloden, etc |
|
As customized |
|
Status | T4 T5 T6 or other special status |
|
Usage | aluminum profile for windows/doors/decoration/construction/curtain wall |
|
Quality | China Nation Standard GB/T |
|
Packing | Protective film+plastic film or EPE+kraft paper |
|
Certificate | ISO 9001 2008 |
|
MOQ | 1 tons. Usuall 12 tons for a 20 feet contaner; 24 tons for a 40 feet container. |
|
Press Machine | 500-4000 tons all together 64 press lines |
|
Moulding | 1. Using our moulds, no fee; |
|
2. Using customer drawing, opening mould, usually about 5 tons the moulding fee is free; |
|
3. Can be diguessed. |
|
Chemical Composition of 1050 Aluminum Tube (Mass Percentage, %)
1050 belongs to industrial pure aluminum (purity ≥99.5%). Its typical composition is as follows:
Element Aluminum Iron Silicon Copper Manganese Zinc Other Impurities (Each) Other Impurities (Total)
(Al)** (Fe)** (Si)** (Cu)** (Mn)** (Zn)**
Content ≥99.50 ≤0.40 ≤0.25 ≤0.05 ≤0.05 ≤0.07 ≤0.03 ≤0.15
Note: Specific compositions may vary slightly depending on standards (e.g., ASTM, GB/T 3190), but aluminum content remains ≥99.5%.
Mechanical Properties of 1050 Aluminum Tube
Mechanical properties are significantly influenced by material states (annealed, cold-worked, etc.). Common states and properties are listed below:
State Tensile Strength Yield Strength Elongation Hardness
(MPa) (MPa) (%, ≥) (HB)
